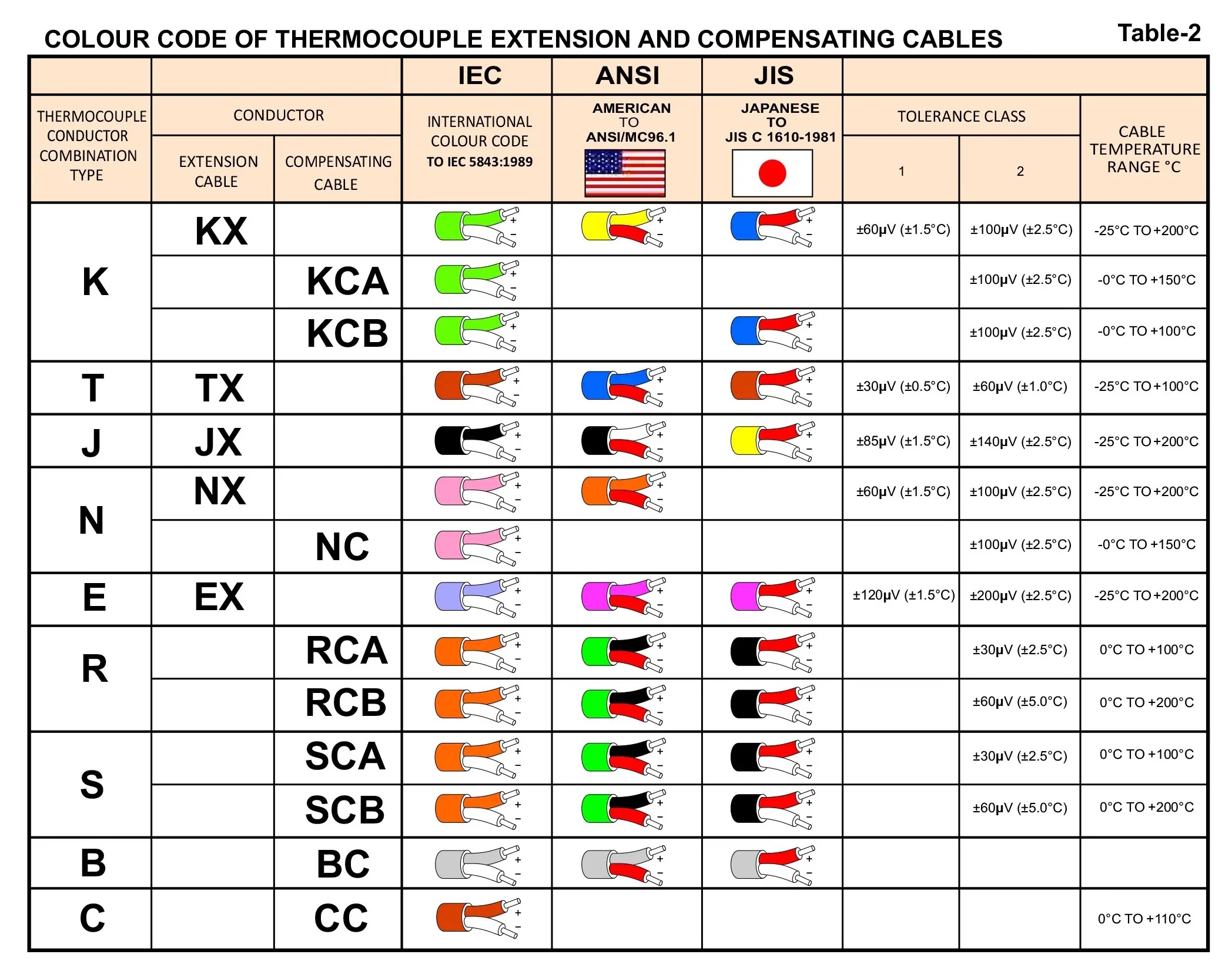

Color code standards and wire insulation identification

Color code standards and wire insulation identification

ANSI color code: TC grade

Type

Postive

Negative

Out sheath

J

White

Red

Brown

K

Yellow

Red

Brown

T

Blue

Red

Brown

E

Violet

Red

Brown

N

Orange

Red

Brown

R/SX

\

\

\

U

\

\

\

B

\

\

\


ANSI color code: Extension cable grade

Type

Postive

Negative

Out sheath

J

White

Red

Black

K

Yellow

Red

Yellow

T

Blue

Red

Blue

E

Violet

Red

Violet

N

Orange

Red

Orange

R/SX

Black

Red

Green

U

Black

Red

White

B

Grey

Red

Grey


IEC color code :TC grade

Type

Postive

Negative

Out sheath

J

Black

White

Black

K

Green

White

Green

T

Brown

White

Brown

E

Violet

White

Violet

N

Pink

White

Pink

R/SX

Orange

White

Orange

U

White

Red

White

B

Grey

White

Grey


IEC color standard : Extension cable grade

Type

Postive

Negative

Out sheath

J

Black

White

Blue

K

Green

White

Blue

T

Brown

White

Blue

E

Violet

White

Blue

N

Pink

White

Blue

R/SX

Orange

White

Blue

U

White

Red

White

B

Grey

White

Blue
