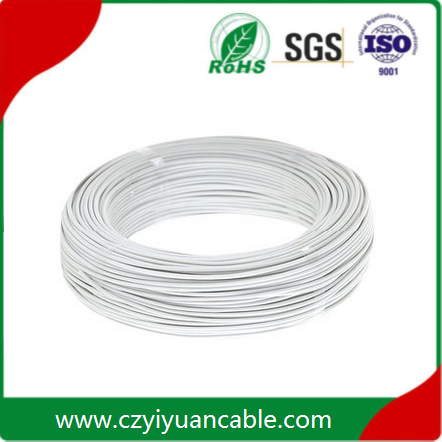

Fire resistant wire-GN350

Product Item : Model no.:GN450
Rated voltage：300/500V
Working temperature：-60～+450℃
Conductor：Twisted pure nickel wire
Insulation：Glass Fiber Braided + Fluorophlogopite Belt+Glass Fiber Braided
Product description：fire resistant wire
INQUIRY

Fire resistant wire and cable (Fireproof wires, Fire rated wires) can maintain the integrity of wire and cable lines and the normal operation of line equipment for a certain period of time while the external flame is still burning in the fire accident of wire and cable.

We use the Glassfiber+ Mica and Fireproof silicon materials to be the insulation.

Below is our fire resistant wire infor. of types,cable structures,specifications,etc.

If you have special requirements please feel free to message or email us!

Fire resistant wire types

Model	Product name	Temperature tolerance grade	Voltage
GN-350	Bare Cu/Glassfiber/Mica/GF	350°C	600V
GN-450	nickel-plated Cu /Glassfiber/Mica/GF	450°C	600V
GN-500	Pure nickel wire/Glassfiber/Mica/GF	500°C	600V
GN-1000	Copper/Fireproof silicon/Silicon	1000°C	600V

Structure:

Characteristics/uses：

Fixed laying, plus flame burning, no harmful and toxic gases. This product is a kind of wire and wire used in various electrical devices which need fire protection performance in metallurgical, thermal, petroleum, chemical, natural gas, kerosene and other special environments.

Fire resistant wire Specification, structure and technical parameters：

Nominal cross-section area （mm2）	Conductor structure Number/Wire Diameter（mm）	Insulation thickness （mm）	Outside diameter controlled （mm）	DC Resistance of Conductor at 20 ℃ （Ω/km）	Packaging length （m）
0.5	7 × 0.30	0.5	2.3 ± 0.3	40.8	200
0.75	11 × 0.30	0.5	2.5 ± 0.3	24.3	200
1	14 × 0.30	0.5	2.6 ± 0.3	20.0	200
1.5	21 × 0.30	0.5	2.9 ± 0.3	12.6	100
2	28 × 0.30	0.6	3.3 ± 0.5	9.84	100
2.5	35 × 0.30	0.6	3.6 ± 0.5	7.37	100
4	56 × 0.30	0.8	4.7 ± 0.5	4.83	100
6	84 × 0.30	0.8	5.5 ± 0.5	3.26	100
10	84 × 0.40	0.8	6.6 ± 0.5	1.80	100
16	228 × 0.30	0.8	7.8 ± 0.5	1.31	100
16	126 × 0.40	0.8	7.8 ± 0.5	1.31	100
25	196 × 0.40	0.8	9.5 ± 0.5	0.758	100
25	361 × 0.30	0.8	9.5 ± 0.5	0.758	100
35	494 × 0.30	1.0	11.2 ± 1.0	0.548	100
50	396 × 0.40	1.2	13.2 ± 1.0	0.384	100
50	703 × 0.30	1.2	13.2 ± 1.0	0.384	100
70	551 × 0.40	1.2	15.4 ± 1.0	0.289	100
70	988 × 0.30	1.2	15.4 ± 1.0	0.289	100
95	760 × 0.40	1.2	17.4 ± 1.0	0.205	100
Note: According to the technical agreement between the two parties, products of other specifications can be produced
