High temperature wire-Fiberglass

  • High temperature wire-Fiberglass
  • High temperature wire-Fiberglass
High temperature wire-Fiberglass High temperature wire-Fiberglass

High temperature wire-Fiberglass

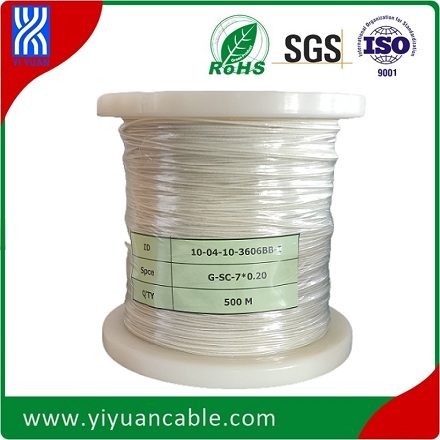

  • Product Item : Model no.:G-SC-7*0.2
  • Conductor:silver plated copper
  • Insulation:Fiberglass
  • Temperature range: 0℃-400℃
  • MOQ:500M
  • Product description:This high temperature wire is Fiberglass insulated. Temperature : 400℃ Nickel plated copper conductor 7*0.2 Delivery time:15 days Payment:TT in advanced
  • INQUIRY

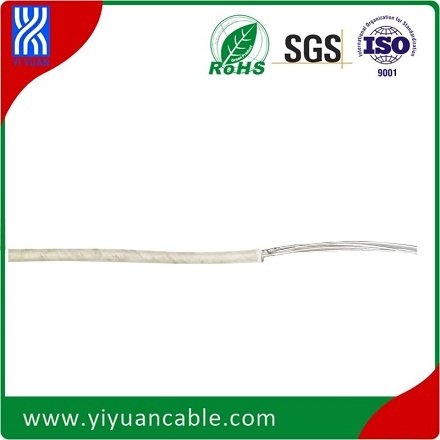

This high temperature wire is Fiberglass insulated,which can bear 400.


Below is specification data sheet:


Material & Dimension Pre-Report
Cable type Fiberglass insulated Wire
Product ID G-SC-7*0.2
Conductor Material Silver Plated Copper (SPC )
Single Conductor DIA 0.2mm
Conductor Construction 7 Inner wires stranded
Insulator Material Fiberglass with Polyurethane painting
Insulator Color White
Overall Dia. 0.95mm

Description of High temperature cable


High temperature wire and cable represent a vast range of wires which continue to perform in high temperatures.


Yiyuan has designed a specialized family of wire and cable products that can take the heat. All of these high temperature cables can withstand applications in continuous heat.


Our family of high temperature wire & cable is available in many configurations and gauge sizes for power or control applications .


For demands of high temperature wire,cable working under 200 °C and 250 °C we use teflon FEP/PFA and silicone rubber to be the insualtion materials.

For demands of high temperature wire,cable working under 400 °C we use Fiberglass to be the insualtion materials.

For demands of under 800 °C we use High silica to be the insualtion materials.


Below is our regularl high temperature wire model no. forms with structures, Temperature,etc.


If you have special requirements please feel free to message or email us!


Whatsapp/Tel/Wechat: +86 13811300279

Email: sales@yiyuancable.com



Our factory Mfr. model no.:


Model

Description

Temperature

Voltage

G-NC-400

Fiberglass + Copper nickel plated conductor

400°C

600V

G-SC-400

Fiberglass + Copper silver plated conductor

400°C

600V

GG-2NC/SC-400

Fiberglass +   Fiberglass + Conductors

400°C

600V

GB-2N-400

Fiberglass + SS braid + two cores pure nickel conductor

400°C

600V

P-NC-260

Teflon PFA + Copper nickel plated conductor

260

600V

P-SC-260

Teflon PFA + Copper silver plated conductor

260

600V

PP-2NC/SC-260

Teflon PFA + PFA+ two cores conductors

260

600V

F-NC-200

Teflon FEP + Copper nickel plated conductor

200

600V

F-SC-200

Teflon FEP+ Copper silver plated conductor

200

600V

FF-2NC/SC-200

Teflon FEP+ FEP + two cores conductor

200

600V

H-NC-800

High silica + Copper nickel plated conductor

800

600V

H-SC-800

High silica + Copper silver plated conductor

800

600V

HH-2NC/SC-800

High silica + High silica + two cores conductors

800

600V

X-TC-180

Silicon + Copper tinned conductor

180

600V

XX-2TC-180

Silicon + Silicon + two cores Copper tinned conductors

180

600V






Other popular Named Model no. in the market:


Model

Description

Temperature

Voltage

AF200

FEP copper silver-plated wire

200°C

600V

AF200X

FEP copper tinned wire

200°C

600V

AF250

PFA nickel or silver plated copper wire

250°C

600V

AFT250

PTFE silver, nickeled copper

250°C

600V

AGR

Silicon tinned copper wire

200°C

600V

AGRP

Silicon+Glass Fiber+Silicon

200°C

600V

AFF

FEP+FEP or PFA+PFA

250°C

300V

YGZ

Silicon+Silicon

200°C

300V

YGZF

FEP+ Silicon

200°C

300V

AFPF

PFA+braid+PFA

250°C

300V

YGZP

Silicon +braid+Silicon

200°C

300V

YGZPF

FEP +braid+Silicon

200°C

300V
