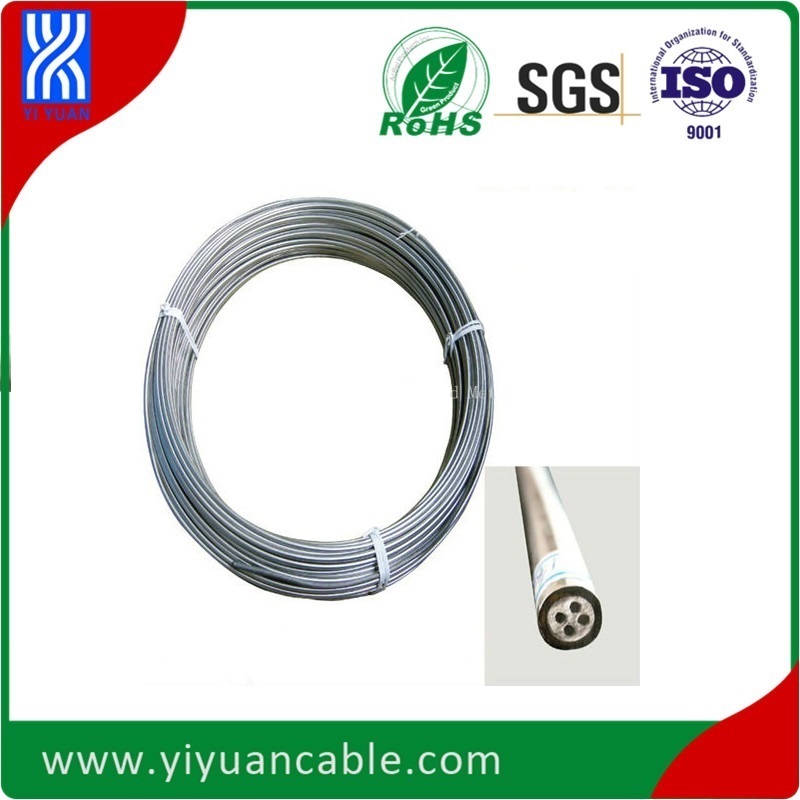

8.0mm duplex thermocouple cable

Specification:
1.Model:KJ2-A-8.0;
2.Graduation Mark:J;
3.Core  number:Duplex type( 4 cores);
4.Material of the outer protection tube:A-304/321(0Cr18Ni9) ;
Other types of outer protection tube are available:
[I].A-304 or321    [II].B-GH3030   [III].C-GH3039   [ IV].IN-INCONEL600    [V].P-310S [VI]. HL-316L
5.Diameter of outer tube:8.0mm;( Diameter from 3.0mm to 12.7mm available)
6.Thickness of outer tube:1.12mm;
7.Inner core element:Fe/CuNi;
8.Diameter of core wire:1.22-1.28mm
9.Limited length for piece:35m;
10. Special requirements can be customized .

Thermocouple temperature tolerance:
1.Class I:
Temperature range:-40°C to 375°C,the tolerance is ±1.5°C;
Temperature range:375°C to 750°C,the tolerance is± 0.004
2.Class II:
Temperature range:-40°C to 333°C,the tolerance is ±2.5°C;
Temperature range:333°C to 750°C,the tolerance is± 0.0075
