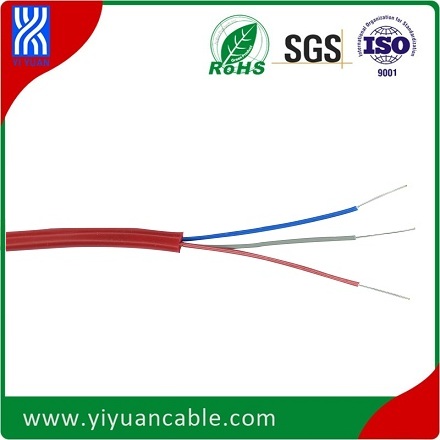

RTD cable-Teflon PFA + Silicone-3cores

  • RTD cable-Teflon PFA + Silicone-3cores
RTD cable-Teflon PFA + Silicone-3cores

RTD cable-Teflon PFA + Silicone-3cores

  • Product Item : PX-3TC-24F
  • 3cores PFA+ silicone 24AWG
  • Stranded Coppe tinned conductor 7*0.2mm
  • MOQ:500m
  • Delivery time: 15 days
  • Product description:This RTD sensors extension cable,wire is 3 cores copper tinned conductor with PFA + silicone nsulation 24AWG.
  • INQUIRY


Material & Dimension Pre-Report
Cable type RTD CABLE
Product ID PX-3TC-24F
Conductor Material TINNED COPPER WIRE
Single Conductor DIA 0.2mm
Conductor Construction 7 Inner wires stranded
Cores 3 Cores
Insulator Material Teflon PFA 260
Insulator Color Blue, Grey, Red
Insulation Dia. 1.0 mm
Cable Construction Twisted round
Out sheath Material Silicone Rubber
Out sheath color Red
Overall Dia. 4.2mm


Contact us for your customized Rtd sensor extension cable:


Whatsapp/Tel/Wechat: +86 13811300279

Email: sales@yiyuancable.com




Description of RTD sensor and RTD extension cable


An RTD(Resistance temperature detectors) is a temperature sensor which measures temperature that the resistance of a metal changes with temperature. Actually, an electrical current is transmitted through a piece of metal (the RTD element or resistor) located in close to the area where temperature is to be measured. The resistance value of the RTD element is then measured by an instrument. This resistance value is then correlated to temperature based upon the known resistance characteristics of the RTD element.


We offer wide range of RTD extension cables with variety of insulation PVC, FEP, PFA, Silicon, Fiber glass,polymide, etc. Generally copper instrumentation cables are used to interconnecting RTD sensors with your process instrumentation. Resistance in all wires in RTD cables remain almost same to get the best results.


We can produce copper silver-plated conductor, copper tinned conductor and copper nickel-plated conductor in ANSI code, IEC code,etc.
