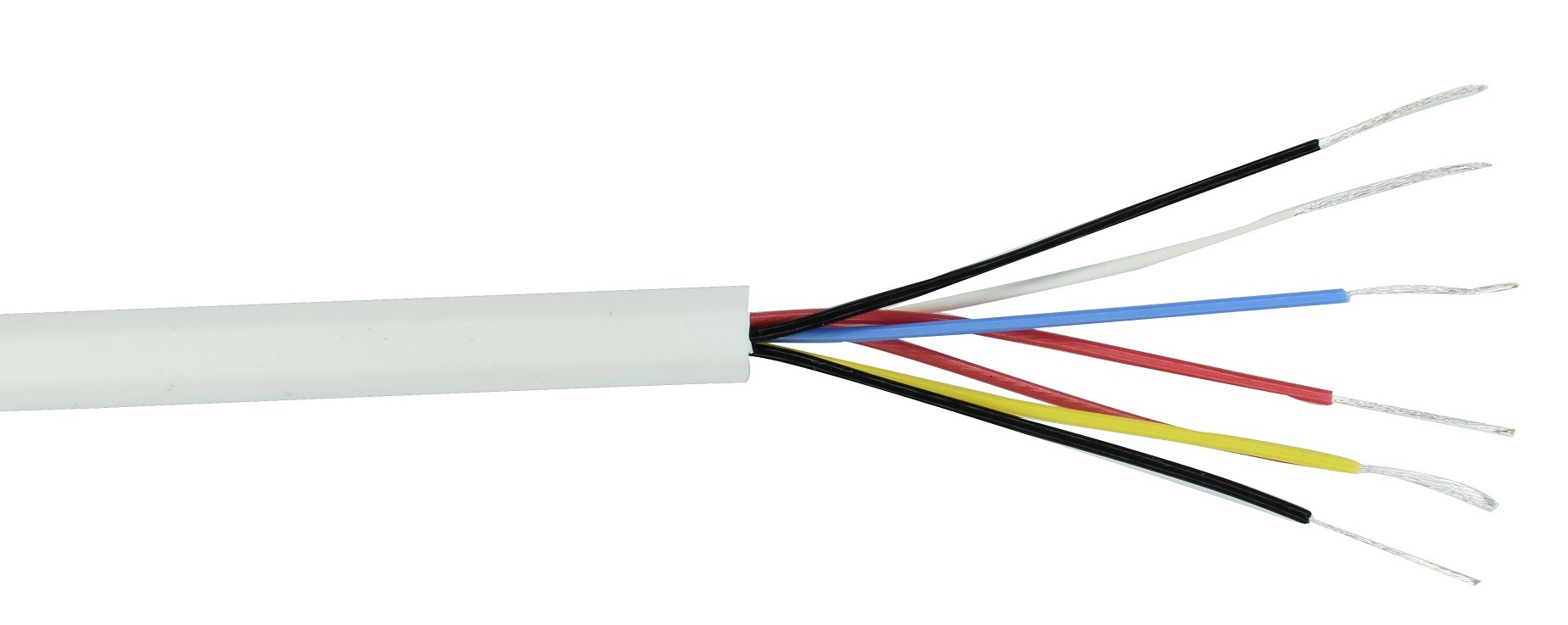

RTD cable-FEP+ Silicone-7cores

  • RTD cable-FEP+ Silicone-7cores
RTD cable-FEP+ Silicone-7cores

RTD cable-FEP+ Silicone-7cores

  • Product Item : Model:FX-7SC-26F
  • 7cores Fep+ silicone 26AWG
  • Stranded Copper silver-plated conductor 7*0.2mm
  • MOQ:500m
  • Delivery time: 15 days
  • Product description:This RTD sensors extension cable,wire is 7 cores copper silverl-plated conductor with FEP + silicone nsulation 26AWG.
  • INQUIRY

Material & Dimension Pre-Report
Product ID FX-7SC-7*0.15
Conductor Material Copper plated Silver
Single Conductor DIA 0.20mm
Conductor Construction 7 Inner Wires Stranded
Insulator Material FEP 200°C
Insulator Color RED-RED-BLACK-BLACK-WHITE-BLUE-YELLOW
Cable Construction 7 Wires Stranded
Jacket Material Silicone
Jacket Color BLACK
Insulated DIA 0.8mm
Cable DIA 5.8mm

2017.05.18



Description of RTD and RTD cable


An RTD(Resistance temperature detectors) is a temperature sensor which measures temperature that the resistance of a metal changes with temperature. Actually, an electrical current is transmitted through a piece of metal (the RTD element or resistor) located in close to the area where temperature is to be measured. The resistance value of the RTD element is then measured by an instrument. This resistance value is then correlated to temperature based upon the known resistance characteristics of the RTD element.


We offer wide range of RTD extension cables with variety of insulation PVC, FEP, PFA, Silicon, Fiber glass,polymide, etc. Generally copper instrumentation cables are used to interconnecting RTD sensors with your process instrumentation. Resistance in all wires in RTD cables remain almost same to get the best results.


You can find more specifications below of this RTD sensors extension cable,wire (4 cores copper silver-plated conductor with FEP + silicone insulation + SSbraid -24AWG.)


We can produce copper silver-plated conductor, copper tinned conductor and copper nickel-plated conductor in ANSI code, IEC code,etc.

And we can produce according to your requirements(specification).
