RTD cable-FF-3NC-24F

  • RTD cable-FF-3NC-24F
RTD cable-FF-3NC-24F

RTD cable-FF-3NC-24F

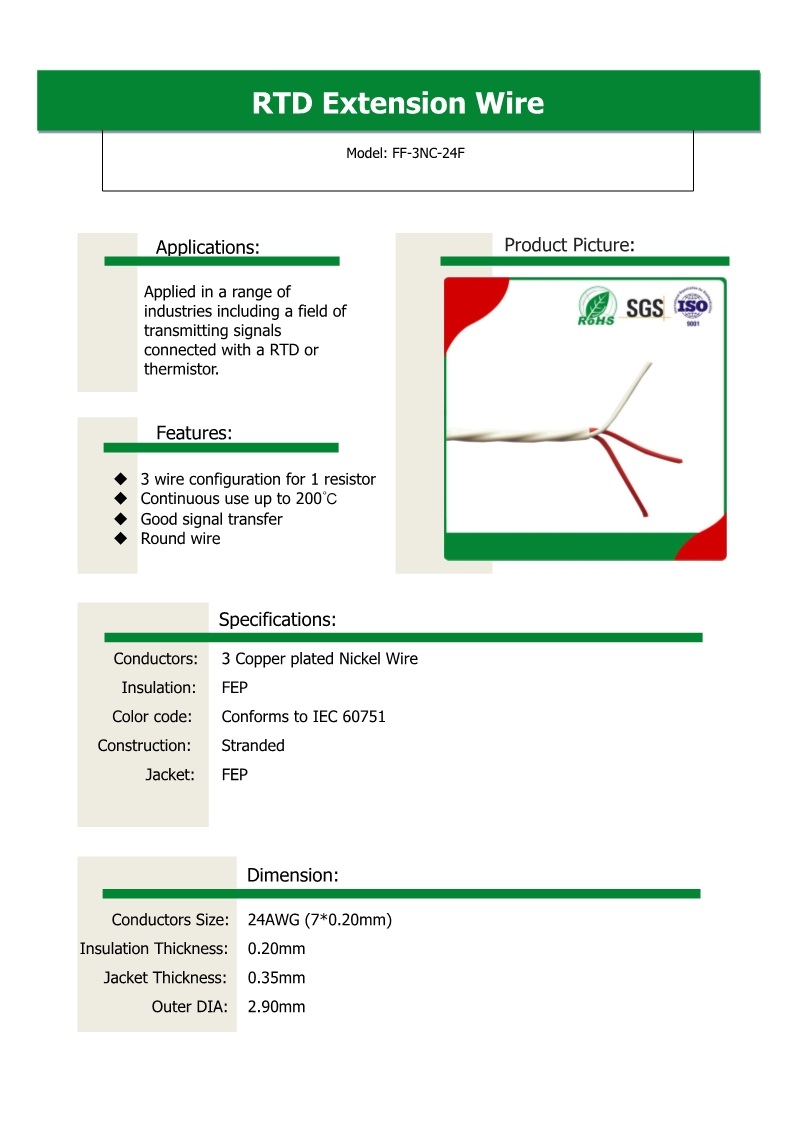

  • Product Item : Model:FF-3NC-24F
  • 3 cores Teflon FEP/Teflon FEP
  • Stranded Copper nickel-plated conductor 7*0.2mm
  • MOQ:500m
  • Delivery time: 10 days

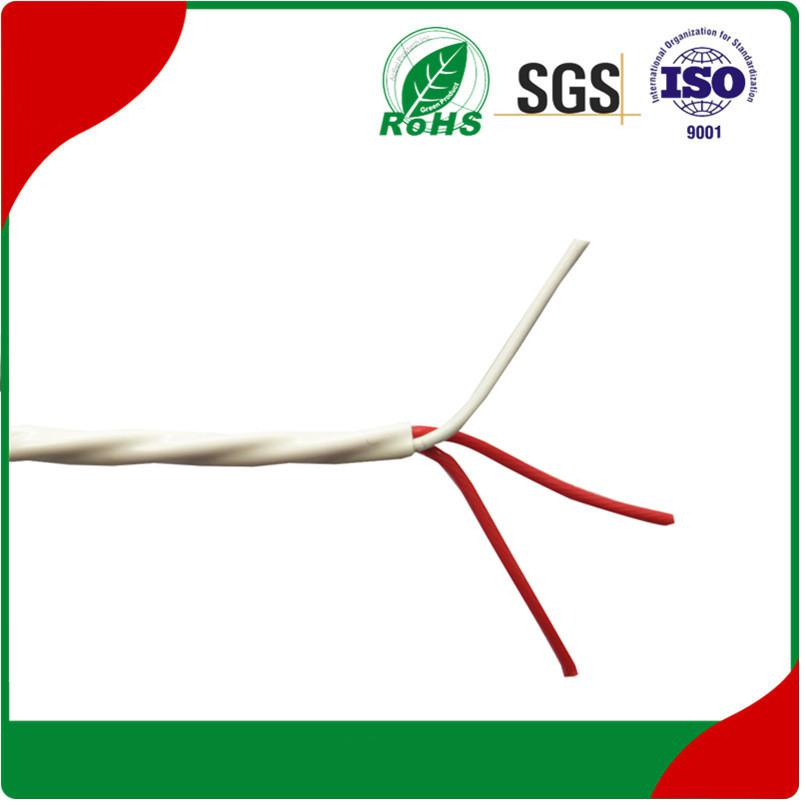

  • Product description:This RTD sensors extension cable,wire is 3 cores copper nickel-plated conductor with Teflon FEP insulation 24AWG.
  • INQUIRY

You can find more specifications below of this RTD sensors extension cable,wire (3 cores copper nickel-plated conductor with Teflon FEP insulation 24AWG.)


We can produce copper silver-plated conductor, copper tinned conductor and copper nickel-plated conductor in ANSI code, IEC code,etc.

And we can produce according to your requirements(specification).


Contact us for RTD catalogue and your customized Rtd sensor extension cable:


Whatsapp/Tel/Wechat: +86 13811300279

Email: sales@yiyuancable.com


Below are Yiyuan RTD cable Mfr. Model nos.

Model

Description

Temperature

GG

Fiberglass insulation + Fiberglass out sheath

400°C

GGB

Fiberglass insulation + Fiberglass out sheath+ SSB braid

400°C

F

Teflon FEP insulation

200°C

FF

Teflon FEP insulation with FEP out sheath

200°C

FTF

Teflon FEP + Copper tinned thread braid + FEP out sheath

200°C

FBF

Teflon FEP + SSB + FEP out sheath

200°C

FSF

Teflon FEP + Silver plated copper thread braid + FEP out sheath

200°C

FFB

Teflon FEP + FEP out sheath+ SSB braid

200°C

PP

Teflon PFA insulation with PFA out sheath

260°C

PAP

Teflon PFA + Al-foil + PFA out sheath

260°C

PTP

Teflon PFA + Copper tinned thread braid + PFA out sheath

260°C

PPTP

Teflon PFA + PFA+ Copper tinned thread braid + PFA

260°C

PBP

Teflon PFA + SSB + PFA out sheath

260°C

PPB

Teflon PFA + PFA out sheath+ SSB braid

260°C

VV

PVC insulation + PVC out sheath

105°C

FV

Teflon FEP+ PVC out sheath

105°C

VVB

PVC insulation + PVC out sheath+ SSB braid

105°C

XX

Silicone rubber insulation + Silicone rubber out sheath

180°C

XBX

Silicone rubber insulation + SSB+ Silicone rubber out sheath

180°C

FX

Teflon FEP +Silicone rubber out sheath

180°C

PX

Teflon PFA +Silicone rubber out sheath

180°C

KK

Kapton insulation + Kapton insulation

260°C

HH

High silica insulation + High silica out sheath

800°C



Description of RTD sensor and RTD extension cable


An RTD(Resistance temperature detectors) is a temperature sensor which measures temperature that the resistance of a metal changes with temperature. Actually, an electrical current is transmitted through a piece of metal (the RTD element or resistor) located in close to the area where temperature is to be measured. The resistance value of the RTD element is then measured by an instrument. This resistance value is then correlated to temperature based upon the known resistance characteristics of the RTD element.


We offer wide range of RTD extension cables with variety of insulation PVC, FEP, PFA, Silicon, Fiber glass,polymide, etc. Generally copper instrumentation cables are used to interconnecting RTD sensors with your process instrumentation. Resistance in all wires in RTD cables remain almost same to get the best results.
