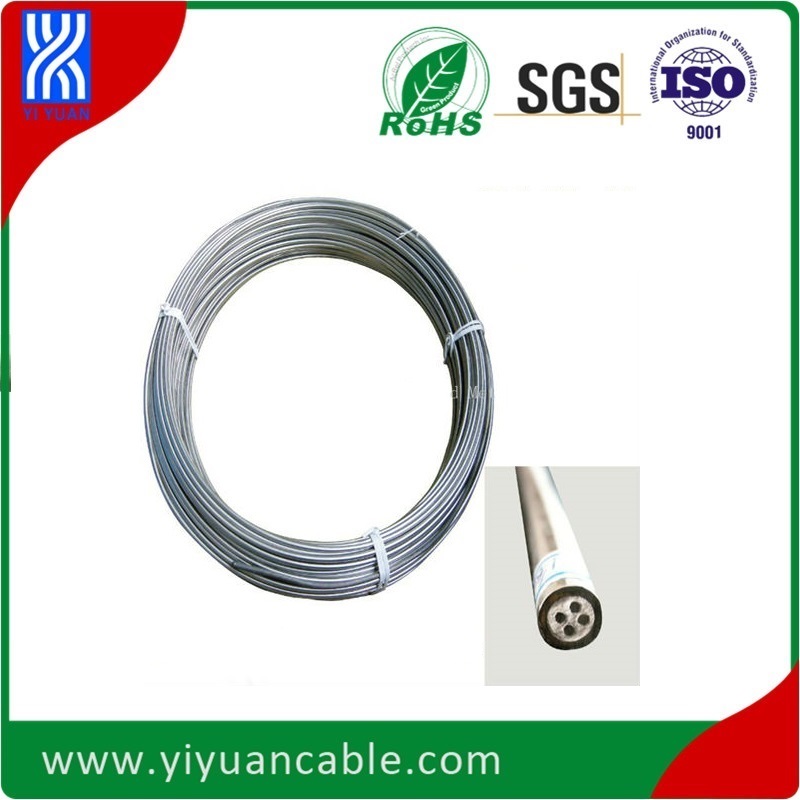

Stainless Steel Sheath K Type 5.0mm 310S Duplex 4-Core Mi Thermocouple Cable

Product description：Stainless Steel Sheath K Type 5.0mm 310S Duplex 4-Core Mi Thermocouple Cable
INQUIRY

310S simplex K thermocouple cable

Specification:
1.Model:KK2-P-5.0;
2.Graduation Mark:K(Chromel/Alumel);
3.Wire number:Duplex type( 4 cores);
4.Material of the outer protection tube: P-310S (0Cr25Ni20) ;
Other types of outer protection tube are available:
[I].A-304 or321 [II].B-GH3030 [III].C-GH3039 [ IV].IN-INCONEL600 [V].P-310S [V]. HL-316L
5.Diameter of outer tube:5.0mm;( diameter from 3.0mm to 12.7mm available );
6.Thickness of outer tube:0.70mm;
7.Inner core element:NiCr/NiSi;
8.Diameter of core wire:0.80mm
9.Limited length for piece:85m;
10. Special requirements can be customized.

Package:30-50meters/coil,4 coils/carton box.

Thermocouple temperature tolerance:
1.Class I:
Temperature range:-40°C to 375°C,the tolerance is ±1.5°C;
Temperature range:375°C to 1000°C,the tolerance is± 0.004
2.Class II:
Temperature range:-40°C to 333°C,the tolerance is ±2.5°C;
Temperature range:333°C to 1200°C,the tolerance is± 0.0075

3.Class III:
Temperature range:-167°C to 40°C,the tolerance is ±2.5°C;
Temperature range:-200°C to -167°C,the tolerance is± 0.015

Temperature range:-40°C to 333°C,the tolerance is ±2.5°C;
Temperature range:333°C to 1200°C,the tolerance is± 0.0075
