TC-Teflon FEP/PVC-T-24F
TC-Teflon FEP/PVC-T-24F
- Product Item : Model:FV-T-24F
- Teflon Fep insulated/PVC out sheath
- Stranded conductor 7*0.2mm
- MOQ:500m
- Delivery time: 10 days

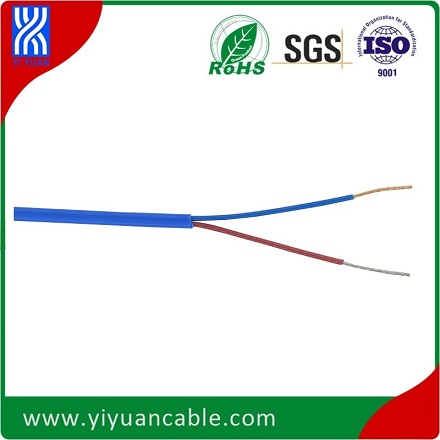

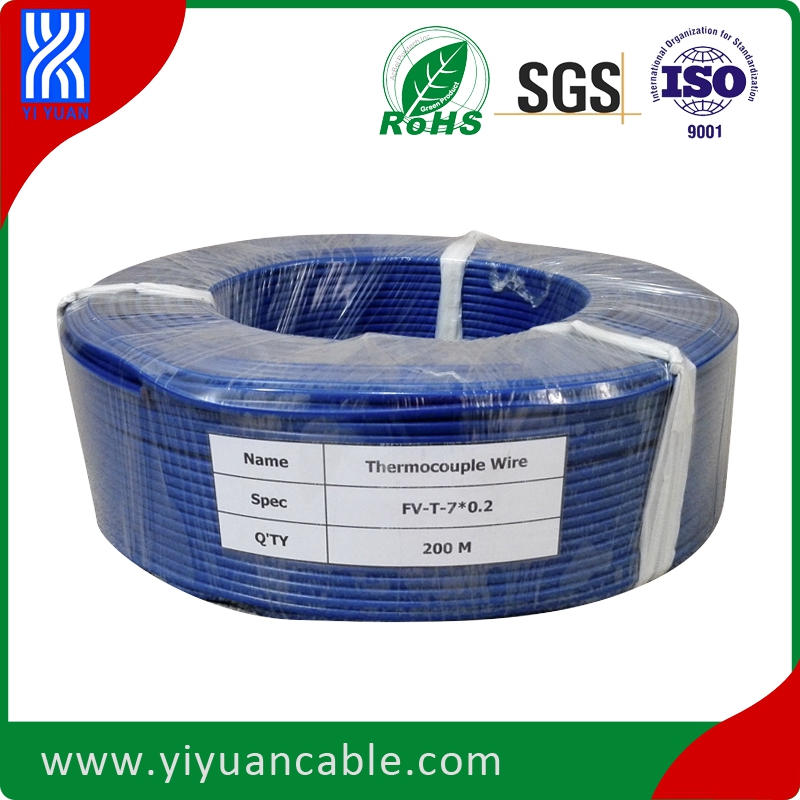

- Product description：This Thermocouple cable is T type Teflon FEP insulation with PVC out sheath of AWG 24, stranded 7*0.2mm.
This Thermocouple cable is T type Teflon FEP insulation with PVC out sheath of AWG 24, stranded 7*0.2mm.
| Material & Dimension Report | |
| Product ID | FV-T-7*0.20 |
| Conductor Material | Tp:Cu Tn: Cu-Ni |
| Single Inner Wire DIA | ￠0.2mm |
| Inner Wire Construction | 7 Inner Wires Stranded |
| Insulator Material | FEP |
| Insulator Color | Tp:Blue, Tn:Red |
| Cable Construction | Parallel |
| Jacket Material | PVC |
| Jacket Color | Blue |
| Insulated DIA | ￠1.0mm |
| Cable DIA | 2.2mm*3.2mm |
| Net weight | 13kg/km |
You can get more specifications of this T type thermocouple extension wire by contact us:
Whatsapp/Tel/Wechat: +86 13811300279
Email: sales@yiyuancable.com
