TC-FEP/FEP/SSB-K type-24F
TC-FEP/FEP/SSB-K type-24F
- Product Item : Model:FFB-K-24F
- Teflon Fep insulated/PVC out sheath/SSB
- Stranded conductor 7*0.2mm
- MOQ:500m
- Delivery time: 15 days

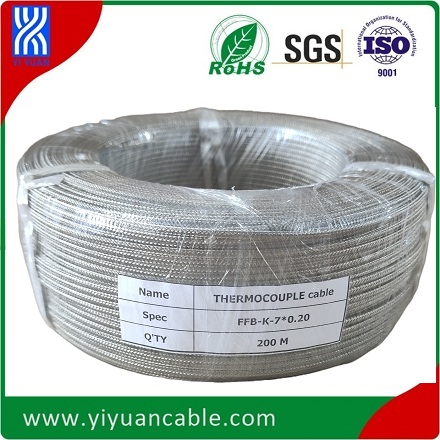

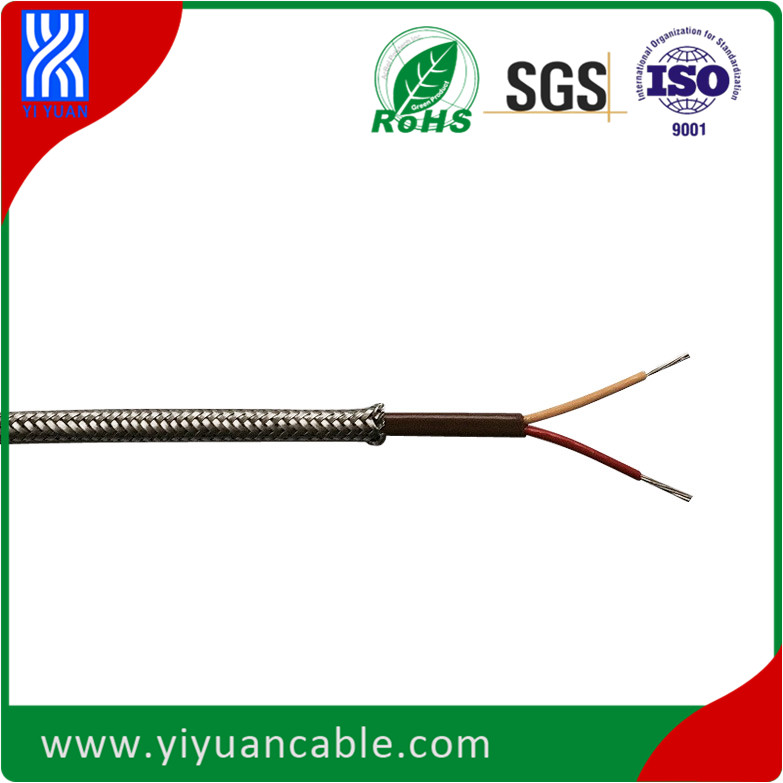

- Product description：This K type thermocouple duplex wire,cable is telfon FEP insulation FEP out sheath with stainless steel braid AWG 24.
You can find more specifications below of this thermocouple wire,cable K type teflon FEP insulation,Stainless Steel braid.
We can produce ANSI code, IEC code,etc.
And we can produce according to your requirements(specification).
| Product Name | Thermocouple wire |
| Product Spec | FFB-K-7x0.2 |
| Conductor Material | Kp:NiCr,Kn:NiAl |
| Conductor Thread nos. x mm2 | 7x0.2mm2 |
| Inner Wire Construction | Stranded |
| Insulation material | FEP |
| Insulation color | Kp:Yellow,Kn:Red |
| Cable Construction | Parallel |
| Jacket material | FEP |
| Jacket color | Brown |
| Outer Braided Material | SS |
| Insulated DIA | ¢0.92mm |
| Cable DIA | ¢ 1.92*2.84 mm |
| Cable Dielectric Test | DC.500v |
