TC-FEP/FEP/SSB-J type-24F
TC-FEP/FEP/SSB-J type-24F
- Product Item : Model:FFB-J-24F
- Teflon Fep insulated/PVC out sheath/SSB
- Stranded conductor 7*0.2mm
- MOQ:500m
- Delivery time: 15 days

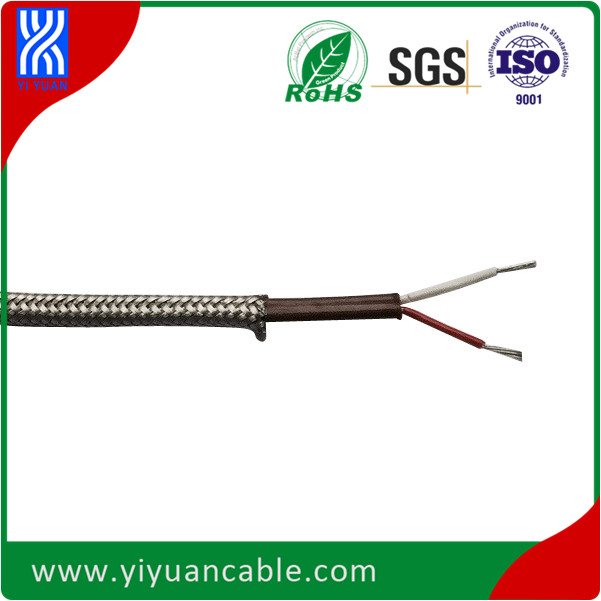

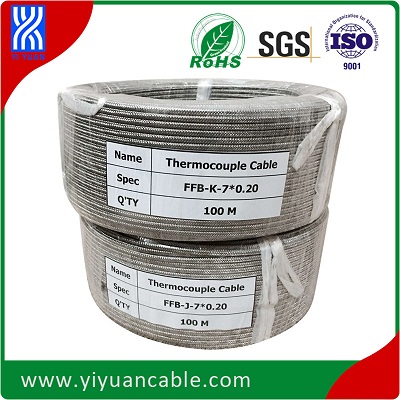

- Product description：This J type thermocouple duplex wire,cable is telfon FEP insulation FEP out sheath with stainless steel braid AWG 24.
You can find more specifications below of this thermocouple wire,cable J type teflon FEP insulation,Stainless Steel braid.
We can produce ANSI code, IEC code,etc.
And we can produce according to your requirements(specification).
| Product Name | Thermocouple Cable |
| Product Spec | FFB--J 7x0.2mm2 |
| Conductor Material | Jp:Fe,Jn:CuNi |
| Conductor Thread nos. x mm2 | 7x0.2mm2 |
| Inner Wire Construction | Stranded |
| Insulation material | FEP |
| Insulation color | Kp:White,Kn:Red |
| Cable Construction | Parallel |
| Jacket material | FEP |
| Jacket color | Brown |
| Outer Braided Material | SS |
| Insulated DIA | ¢1.1mm |
| Cable DIA | ¢ 2.2 mm*3.3mm |
| Cable Dielectric Test | DC.500v |
| Gross weight of the cable | 15.5kg/km |
