... T type thermocouple duplex wire Teflon FEP insulation AWG24

TC-FEP/FEP-T type-24F

  • TC-FEP/FEP-T type-24F
TC-FEP/FEP-T type-24F

TC-FEP/FEP-T type-24F

  • Product Item : Model:FF-T-24F
  • Teflon Fep insulated/Teflon Fep out sheath
  • Stranded conductor 7*0.2mm
  • MOQ:500m
  • Delivery time: 15 days

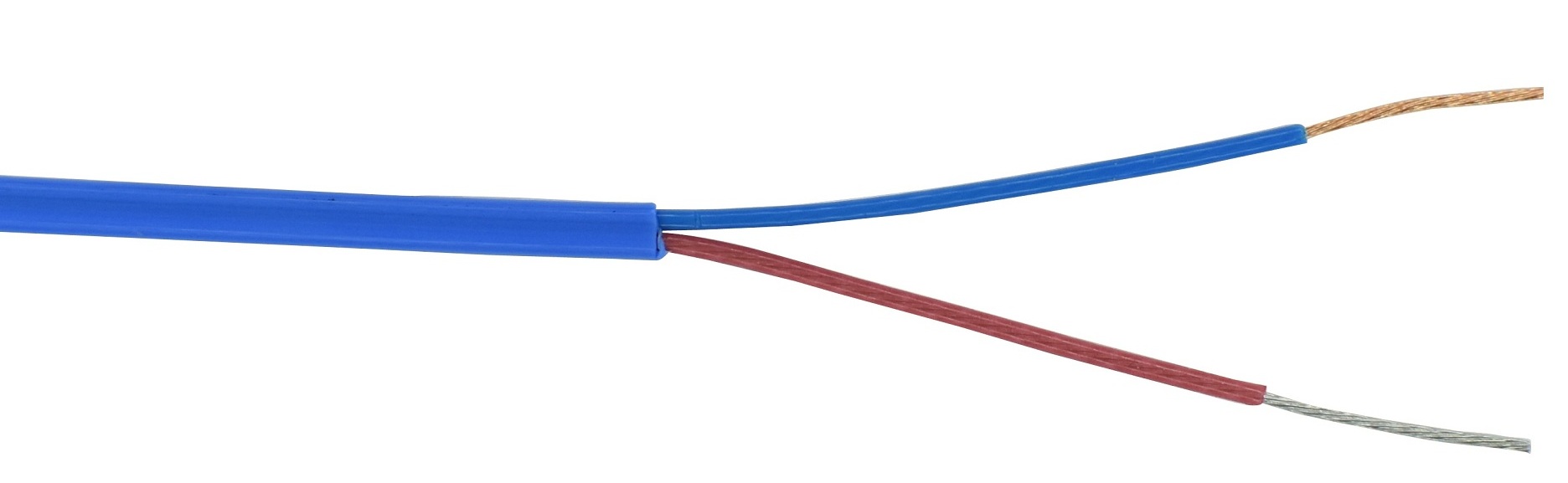

  • Product description:This T type thermocouple duplex wire,cable is telfon FEP insulation FEP out sheath AWG 24.

You can find more specifications below of this thermocouple wire,cable T type teflon FEP insulation.

We can produce ANSI code, IEC code,etc.

And we can produce according to your requirements(specification).

Product ID FF-T-7*0.20
Conductor Material Jp:Cu  Jn: Cu-Ni
Single Inner Wire DIA 0.2mm
Inner Wire Construction 7 Inner Wires Stranded
Insulator Material FEP
Insulator Color Jp:Blue, Jn:Red
Cable Construction Parallel
Jacket Material FEP
Jacket Color Blue
Insulated DIA 1.0mm
Cable DIA 1.5mm*2.5mm
Net weight 10kg/km
