Thermocouple cable-Fiberglass/FG/SSB

  • Thermocouple cable-Fiberglass/FG/SSB
  • Thermocouple cable-Fiberglass/FG/SSB
Thermocouple cable-Fiberglass/FG/SSBThermocouple cable-Fiberglass/FG/SSB

Thermocouple cable-Fiberglass/FG/SSB

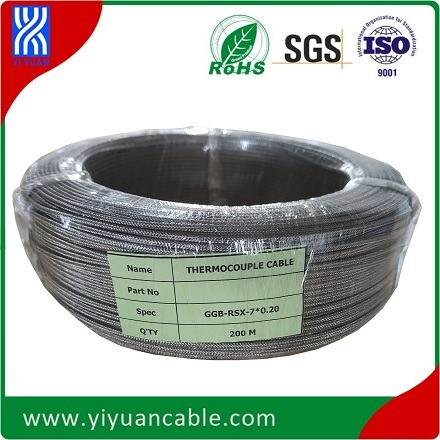

  • Product Item : Model no.:GGB-RSX-24F
  • Fiberglass/ Fiberglass/SSB
  • Stranded conductor 7*0.2mm
  • MOQ:500m
  • Delivery time: 10 days

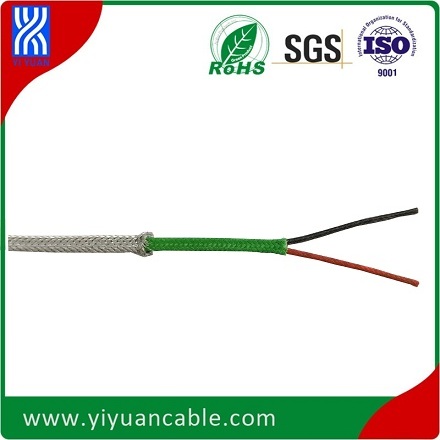

  • Product description:This Thermocouple extension wire, cable is RS type fiberglass insulated with SS braid, AWG 24, stranded 7*0.2mm
  • INQUIRY

You can find more specifications below of this RS type fiberglass insulated thermocouple extension wire,cable .


Material & Dimension Report
Product ID GGB-RSX-7*0.20
Conductor Material R/SXp:Cu, R/SXn:CuNi
Single Inner Wire DIA 0.2mm
Inner Wire Construction 7 Inner Wires Stranded
Insulator Material Fiberglass
Insulator Color R/SXp:Black, R/SXn:Red
Cable Construction Parallel
Jacket Material Fiberglass
Jacket Color Green
Over Braid Material Stainless Steel (with Green Trace Thread)
Insulated DIA 1.2mm
Cable DIA 2.4mm*3.6mm
Cable weight 16.5kg/km


If you have special requirements please feel free to message or email us!


Whatsapp/Tel/Wechat: +86 13811300279

Email: sales@yiyuancable.com



Below is our regularl thermocouple cable model no., and some basic thermocoule cable knowledge including Conductor alloy materials and ANSI ,IEC color code ,descritpion!


Yiyuan Thermocouple cable Mfr. Model no.:


Model

Description

Temperature

GG

Fiberglass insulation + Fiberglass out sheath

400°C

GGB

Fiberglass insulation + Fiberglass out sheath+ SSB braid

400°C

GB

Fiberglass insulation + SSB braid

400°C

FF

Teflon FEP insulation with FEP out sheath

200°C

FTF

Teflon FEP + Copper tinned thread braid + FEP out sheath

200°C

FFB

Teflon FEP + FEP out sheath+ SSB braid

200°C

FB

FEP insulation+ SSB braid

200°C

PP

Teflon PFA insulation with PFA out sheath

260°C

PTP

Teflon PFA + Copper tinned thread braid + PFA out sheath

260°C

PPB

Teflon PFA + PFA out sheath+ SSB braid

260°C

PB

Teflon PFA insulation+ SSB braid

260°C

VV

PVC insulation + PVC out sheath

105°C

FV

Teflon FEP+ PVC out sheath

105°C

VVB

PVC insulation + PVC out sheath+ SSB braid

105°C

XX

Silicone rubber insulation + Silicone rubber out sheath

180°C

PX

Teflon PFA +Silicone rubber out sheath

180°C

KK

Kapton insulation + Kapton insulation

260°C

HH

High silica insulation + High silica out sheath

800°C


Conductor Alloy material

Type

Positive

Negative

J

Fe

Cu-Ni

K

Ni-Cr

Ni-Al

T

Cu

Cu-Ni

E

Ni-Cr

Cu-Ni

N

Ni-Cr-Si

Ni-Si-Mg

R/SX

Cu

Cu-Ni

U

Cu

Cu

B

Pt-30%Rh

Pt-60% Rh













ANSI color code: TC grade

Type

Postive

Negative

Out sheath

J

White

Red

Brown

K

Yellow

Red

Brown

T

Blue

Red

Brown

E

Violet

Red

Brown

N

Orange

Red

Brown

R/SX

\

\

\

U

\

\

\

B

\

\

\














ANSI color code: Extension cable grade

Type

Postive

Negative

Out sheath

J

White

Red

Black

K

Yellow

Red

Yellow

T

Blue

Red

Blue

E

Violet

Red

Violet

N

Orange

Red

Orange

R/SX

Black

Red

Green

U

Black

Red

White

B

Grey

Red

Grey
