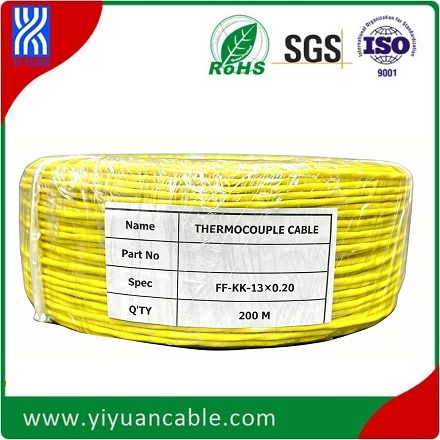

TC-FEP/FEP-KK type-13*0.20

You can find more specifications below of this thermocouple duplex cable K type teflon insulated.

We can produce ANSI code, IEC code,etc.

And we can produce according to your requirements(specification).

Material & Dimension Report
Product ID	FF-KK -13*0.20
Conductor Material	Kp:Ni-Cr,Kn:Ni-Al
Single Inner Wire DIA	￠0.2mm
Inner Wire Construction	13 Inner Wires Stranded
Insulator Material	Teflon FEP-200°C
Insulator Color	Kp:Red, Kn:White

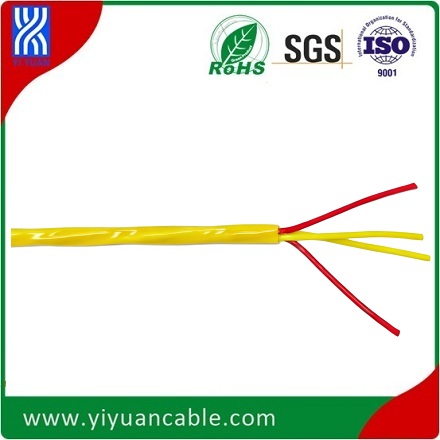

Cable Construction	2 Pairs stranded cable
Jacket Material	Teflon FEP-200°C
Jacket Color	Yellow
Insulated DIA	￠1.35mm
Cable DIA	4.0mm

Contact us for your customized thermocouple extension wire:

Whatsapp/Tel/Wechat: +86 13811300279

Email: sales@yiyuancable.com

Description of thermocouple and thermocouple wire, cable

Thermocouple cable is used to manufacture thermocouple probes in order to sense temperature using the point of cold junction compensation (cjc end).

Thermocouple extension cable is used to carry the signal from the thermocouple sensor to the readout devices and maintain a high degree of accuracy. The material of thermocouple extension wire must match the material used in the positive and negative leg of the thermocouple type (e.g. type K,J,N,etc.) being used in the application.

The thermocouple is a sensor to measure temperature. It consists of two dissimilar metals that are joined together at the sensing end. Different thermocouple types (e.g. J or K type thermocouple wire) use different mixtures of metals in the cable.

Our thermocouple cable, thermocouple extension cable, thermocouple compensating cable can bear temperature up to 850 deg. C.

Color standard

Color standard of ANSI code, IEC code,etc are available

Click below to check color code and wire insulation identification details:

https://www.yiyuancable.com/new/Color-code-standards.html
