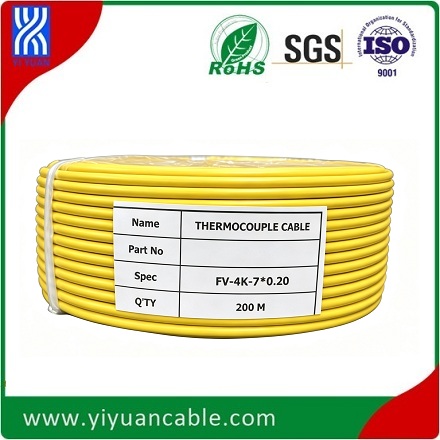

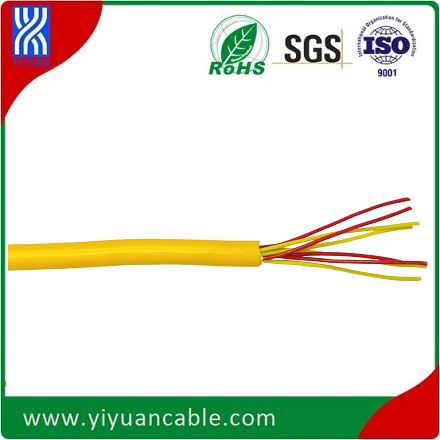

TC-Teflon FEP/PVC-4K-24F

Product Item : Model:FV-4K-7*0.20
Teflon Fep insulated/PVC out sheath
4 pairs Stranded conductor 7*0.20mm
MOQ:500m
Delivery time: 15 days
Product description：This Thermocouple extension cable is K type 4 pairsTeflon FEP insulation with PVC out sheath of AWG 24, stranded 7*0.2mm.
INQUIRY

This Thermocouple extension cable is K type 4 pairs Teflon FEP insulation with PVC out sheath of AWG 24, stranded 7*0.2mm.

Material & Dimension (Pre)Report
Product ID	FV-4K-7*0.20
Conductor Material	Kp:Ni-Cr,Kn:Ni-Al
Single Inner Wire DIA	￠0.20mm
Inner Wire Construction	7 Inner Wires Stranded
Insulator Material	Teflon FEP-200°C
Insulator Color	Kp:Yellow, Kn:Red
Cable Construction	4 Pairs stranded cable
Jacket Material	PVC-108°C
Jacket Color	Yellow
Insulated DIA	￠1.0mm
Cable DIA	￠6.4mm
