TC-Teflon FEP/PVC-4K-24F
TC-Teflon FEP/PVC-4K-24F
- Product Item : Model:FV-4K-7*0.20
- Teflon Fep insulated/PVC out sheath
- 4 pairs Stranded conductor 7*0.20mm
- MOQ:500m
- Delivery time: 15 days

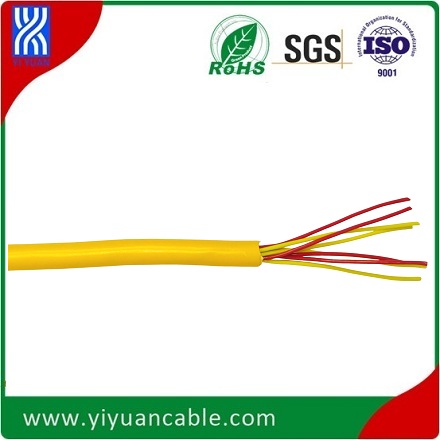

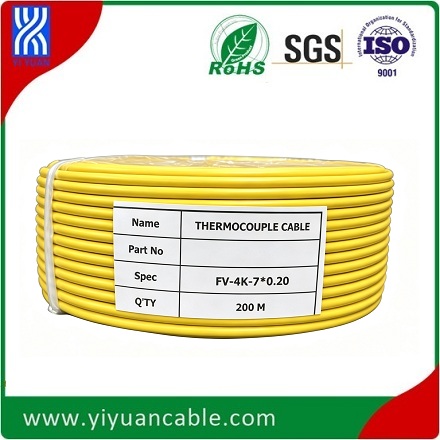

- Product description：This Thermocouple extension cable is K type 4 pairsTeflon FEP insulation with PVC out sheath of AWG 24, stranded 7*0.2mm.
This Thermocouple extension cable is K type 4 pairs Teflon FEP insulation with PVC out sheath of AWG 24, stranded 7*0.2mm.
| Material & Dimension (Pre)Report | |
| Product ID | FV-4K-7*0.20 |
| Conductor Material | Kp:Ni-Cr,Kn:Ni-Al |
| Single Inner Wire DIA | ￠0.20mm |
| Inner Wire Construction | 7 Inner Wires Stranded |
| Insulator Material | Teflon FEP-200°C |
| Insulator Color | Kp:Yellow, Kn:Red |
| Cable Construction | 4 Pairs stranded cable |
| Jacket Material | PVC-108°C |
| Jacket Color | Yellow |
| Insulated DIA | ￠1.0mm |
| Cable DIA | ￠6.4mm |
