Thermo cable PFA insulated +AL-PET foil

  • Thermo cable PFA insulated +AL-PET foil
Thermo cable PFA insulated +AL-PET foil

Thermo cable PFA insulated +AL-PET foil

  • Product Item : Model:PAAP-K-16*0.2
  • Teflon PFA/AL-PET/ Teflon PFA
  • Stranded conductor 16*0.2mm
  • MOQ:500m
  • Delivery time: 15 days

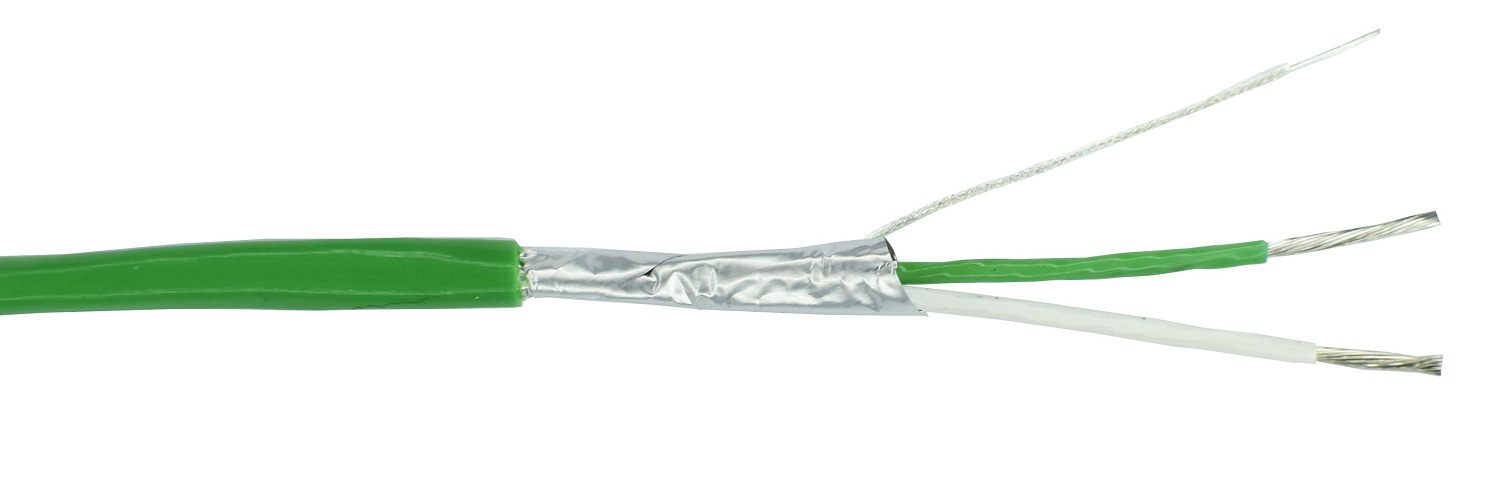

  • Product description:This Thermocouple cable is K type teflon PFA insulated with AL-PET foil, PFA out sheath 16*0.2mm
  • INQUIRY

Click above pic. to get bigger pics.


You can find more specifications below of this K type PFA insulated thermo cable.

we can produce according to your requirements(specification).


Material & Dimension Pre-Report
Cable type Thermocuople K type cable
Product ID KAAP-K-16*0.2
Conductor Material Kp:Ni-Cr,Kn:Ni-Al
Single Conductor DIA 0.2mm
Conductor Construction 16 Inner wires stranded
Earth wire material Copper silver-plated threads
Earth wire size 19*0.1mm
Insulator Material PFA-260
Insulator Color Kp:Green, Kn:White
Insulation Dia. 1.4 mm
Cable Construction 1 Pair stranded cable
Foil AL-PET Foil, two sheets
Out sheath Material PFA-260
Out sheath color Green
Overall Dia. 3.7mm


To be the professional China thermo cable factory we can produce almost all types of thermocouple cable, please check our index :
