thermocouple cable T type kapton

  • thermocouple cable T type kapton
thermocouple cable T type kapton

thermocouple cable T type kapton

  • Product Item : Model:KK-T-24F
  • Polymide insulation with Polymide
  • Stranded conductor 7*0.2mm
  • MOQ:500m
  • Delivery time: 10 days
  • Product description:This Thermocouple cable is T type polymide (kapton) insulation with polymide(kapton) out sheath of AWG 24, stranded 7*0.2mm.
  • INQUIRY

Click above pic. to get bigger pics.

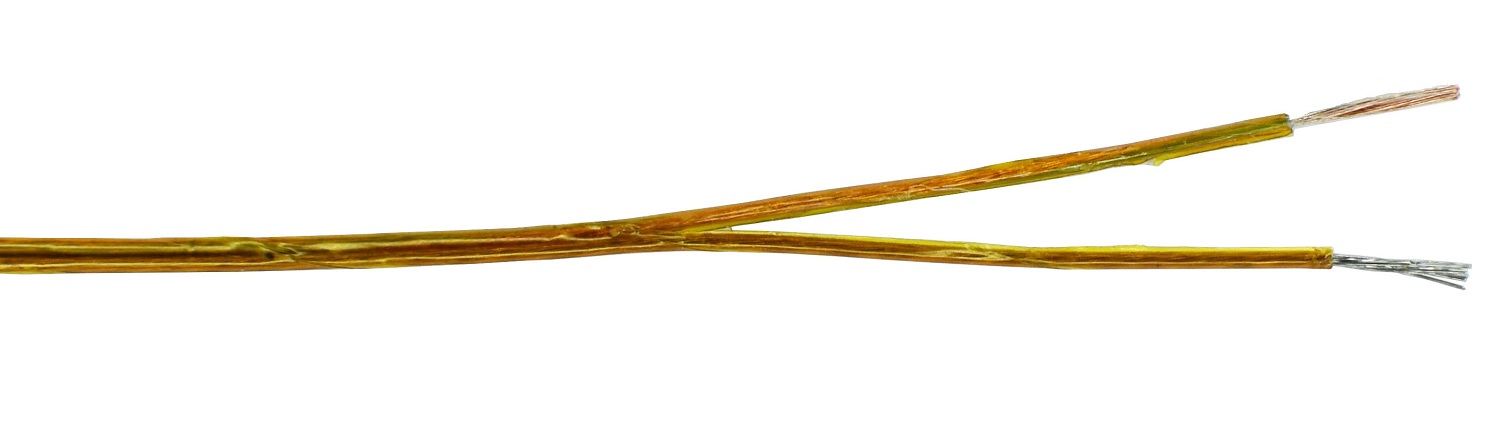

This Thermocouple cable T type polymide(Kapton) insulation with polymide(Kapton) out sheath of AWG 24, stranded 7*0.2mm.


Material & Dimension Pre-Report
Cable type Thermocuople T type cable
Product ID KK-T-7*0.2
Conductor Material Tp:Cu , Tn:Cu-Ni
Single Conductor DIA 0.2mm
Conductor Construction 7 Inner wires stranded
Insulator Material Kapton
Insulator Color Kapton natural color, there is a color strip for Tp
Cable Construction 1 Pair flat cable
Out sheath Material Kapton
Out sheath color Kapton natural color
Overall Dia. 1.15*1.75mm


To be the professional China thermo cable factory we can produce almost all types of thermocouple cable, please check our index :

https://www.yiyuancable.com/new/Index-of-our-thermocouple-wire-cable.html



Click below to check color code and wire insulation identification details:

https://www.yiyuancable.com/new/Color-code-standards.html
